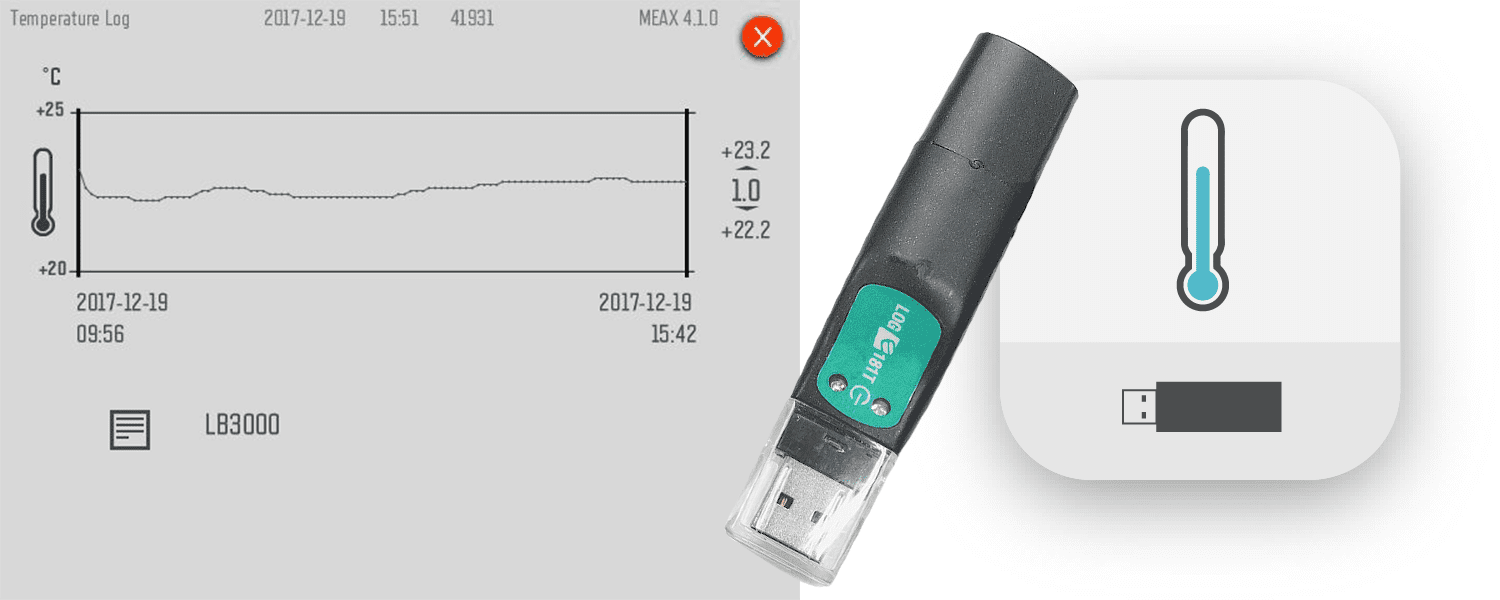

MEAX® T-LOG – Temperature gauge in place!
MEAX® T-log documents the temperature over the course of the measurement process in order to safeguard that the measurement results are not affected by temperature variations in your premises.
MEAX® T-LOG – Temperature gauge in place!
When you measure the geometry in your tooling machine, the temperature in your premises may vary. For example, a cold downdraught from an open door could significantly impact the measurement results. MEAX T-log documents the temperature over the course of the measurement process in order to safeguard that the measurement results are not affected by temperature variations in your premises.
How to use MEAX® T-LOG
- Place the T-log into the machine using the magnetic holder
- Logging starts once the start button is activated
- Start the T-log program in the MEAX DU Unit. Once logging is complete, you connect T-log to your display unit MEAX DU.
- The file is then automatically transferred in full and can be exported as a PDF report.
Meax® T-Log Technical information
- Temperature: -40 to 70 °C
- Accuracy: +/- 0,5 °C at -20 to 50°C. Otherwise +/- 1°C
- Logging interval: Between 30 seconds and 24 hours
- Memory: 60,000 measurements
- Battery service life: 2 years, depending on usage
- Battery: 3,6 V lithium
- Enclosure protection class: IP 65
- Dimensions: 100 x 19 x 19 millimeters
- Weight: 70 grams
